7-inch JC1060P470

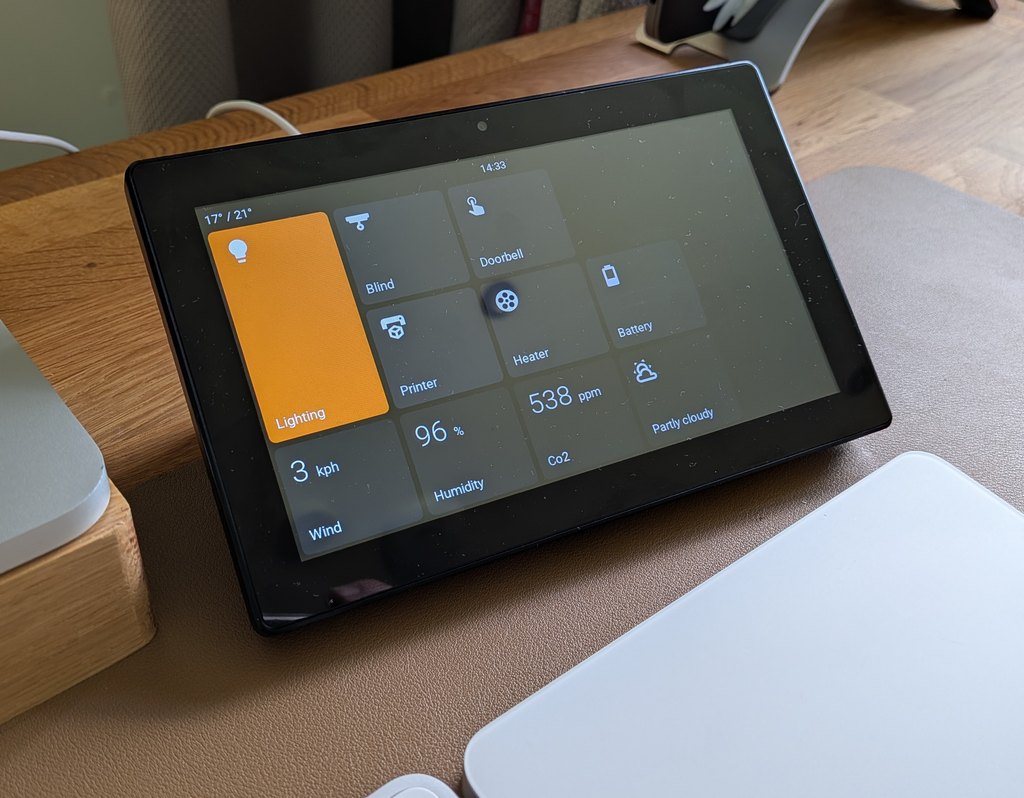

The Guition JC1060P470 is a 7-inch landscape touchscreen powered by an ESP32-P4 processor. It has a 1024×600 display and room for 15 cards on the home screen.
Guition ships two 7-inch panels under the same JC1060P470 name. They look identical from the front, but need different firmware.
Check the version before you flash
- V2: the case has a
V2marking. Use JC1060P470 new panel firmware. - V1 / original: the case has no version marking at all. It does not say
V1. Use JC1060P470 original panel firmware.
If the case does not settle it, disconnect the display from power and unscrew the back. Find the four-digit date code printed on the screen's circuit board (for example, 2622):
2622or higher: V2 / new panel- Earlier than
2622: V1 / original panel
The wrong profile leaves a white screen with a vertical noise band. Reflash the other profile over USB to recover.
Install
Select your version for installation and setup instructions.
| Version | How to identify it | Installation and setup |
|---|---|---|
| V2 / new panel | Case marked V2; screen-board date 2622 or higher | V2 guide |
| V1 / original panel | Unmarked case; screen-board date earlier than 2622 | V1 guide |
Card Grid
Both 7-inch revisions use the same grid size and card layout.

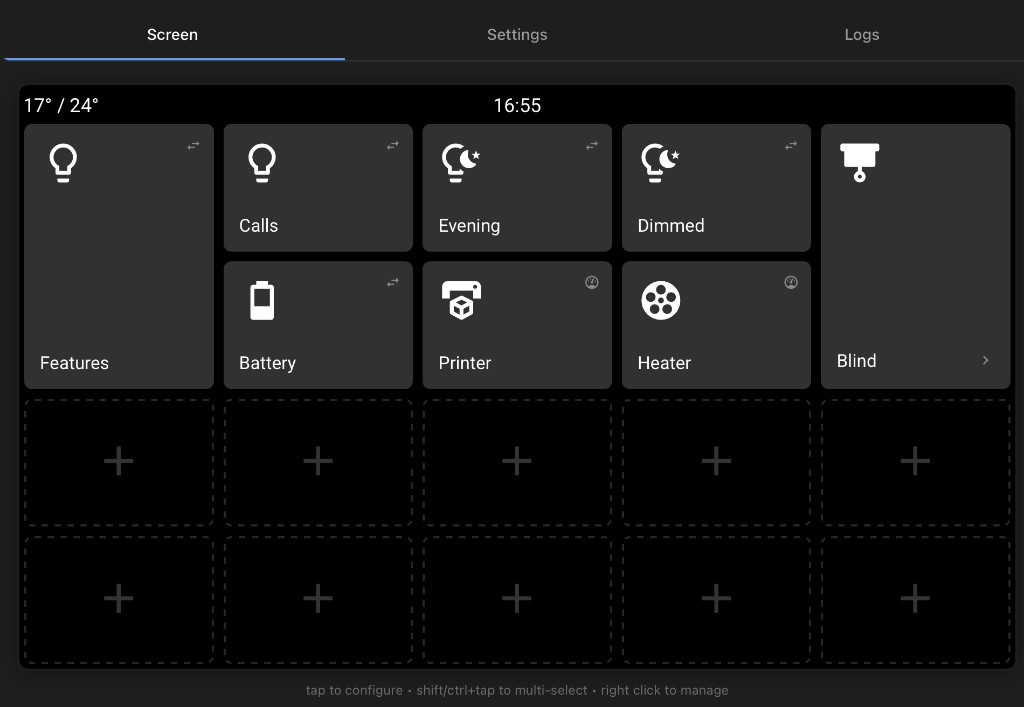

The home screen uses a 3-row x 5-column grid, giving you 15 card slots. Any home-screen card can be turned into a Subpage folder containing up to 14 more cards.
Flexible card sizes are supported: Single, Tall, Wide, and Large.
ESPHome Manual Setup
Each version guide above includes its matching ESPHome package and C6 recovery link. For Ethernet models, use the advanced Ethernet example on the matching version page.
Built-in Camera
Panels with the front camera can use it to wake the screen when someone moves in front of the panel. Choose Camera Motion as the Screensaver mode in Settings. It is available in the V2 / new panel firmware.
Where to Buy
- AliExpress: ~£40
- Desk stand (3D printable): MakerWorld
